Server Room Precision Air Conditioner Units Row Level Air Cooled 3PH 380V CRA3025

Name: Server Room Precision Air Conditioner Units Row Level Air Cooled 3PH 380V CRA3025
Brand: LIRUISI
Price: 1 USD

Brand Name : LIRUISI

Model Number : CRA3025

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 9999 units

Delivery Time : 8 working days

Packaging Details : Width series: half cabinet (300mm width); Full cabinet (600mm width)

Indoor unit model : CRA3025

Main power supply : 380V3PH~50HZ

Air supply method : Front air supply

Number of compressors : 1

Contact Now

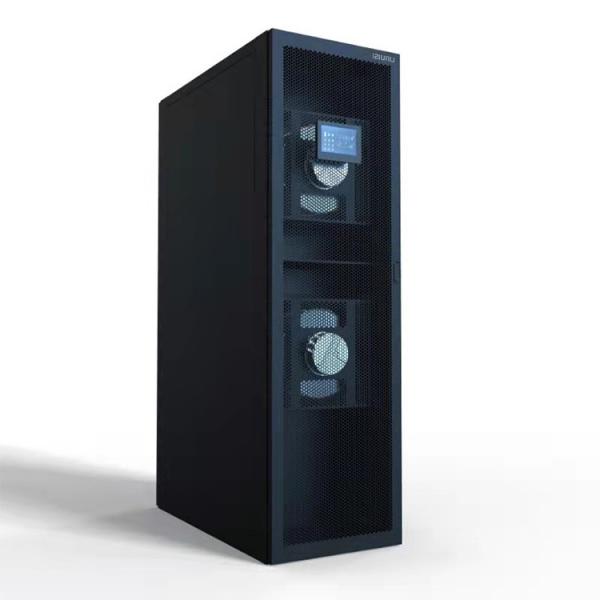

LIRUISI Row-Level Air-Cooled Machine Room Precision Air Conditioner CRA3025

Product introduction:

LRS-CRA series row-level air-cooled room air conditioner is a temperature control product specially designed for medium and high heat density data centers, which is installed close to the heat source, shortens the cold air flow path, and accurately processes the sensible heat generated by the server, which is an ideal choice for green energy-saving data centers and various electronic equipment rooms.Application scenarios: small and medium-sized data centers, modular data centers, cabinet cooling (hot) channel transformation, medium and high heat density communication equipment and computer rooms, etc.

Precision air conditioner products:

Maintenance and upkeep: Choosing a model that is easy to maintain and upkeep, such as an air conditioner configuration that is easy to replace filters and repair components, can reduce maintenance and upkeep costs and improve the service life of the air conditioner.

Product parameters:

LIRUISI【CRA series row-level air-cooled room air conditioner】		CRA series row-level air-cooled room air conditioning and refrigeration system [size and weight of internal unit]
Indoor unit model	CRA3025	Unit width (mm)	300
Main power supply	380V3PH~50HZ	Unit depth (mm)	1100/1200
Air supply method	Front air supply	Unit height (mm)	2000/2200
CRA series row-level air-cooled computer room air conditioner [performance parameters]		Weight (kg)	210
Cooling capacity (kW)	25	CRA series row-level air-cooled room air conditioning and refrigeration system [performance parameters of external unit] [40°C]
apparent cooling capacity	25	Flat panel outdoor unit model	LRS-CMT038SP
Maximum working current of the unit A	37	Compact outdoor unit model	LRS-CMT038SF
Number of compressors	1	CRA series row-level air-cooled room air conditioning and refrigeration system [performance parameters of external unit] [45°C]
Fan form	EC centrifugal fan	Flat panel outdoor unit model	LRS-CMT044SP
Number of fans	6	Compact outdoor unit model	LRS-CMT044SF
Circulating air volume (m3/h)	5000	Centralized outdoor unit model	LRS-CMT050SF
Heating capacity (kw)	3	CRA series row-level air-cooled room air conditioning block refrigeration system [Recommended power distribution specifications]
Humidification capacity (kg/h)	1.5	Recommended open	40
CRA series row-level air-cooled room air conditioning and refrigeration system【Connection pipe size specifications】		Indoor unit power cord (mm2)	46+16
Liquid tube (mm)	15.88
Trachea (mm)	22
Humidification inlet pipe (external thread)	G3/4
Unit water pump drain pipe (mm)	ID9.53*OD17.02
Unit natural drain pipe (mm)	ID16*OD24
